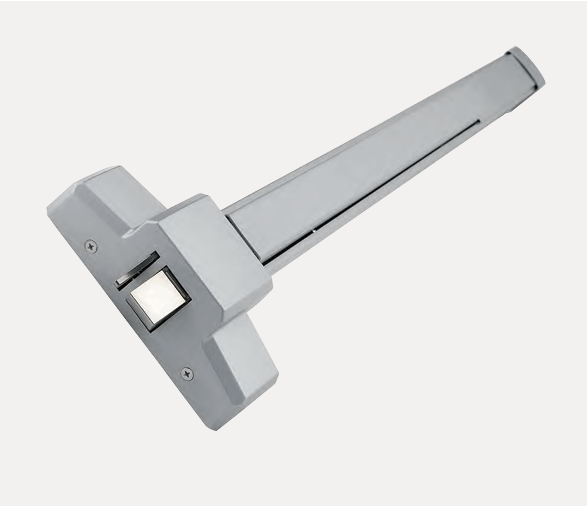

Dormakaba QED311 36 689

Dormakaba Grade 1 QED300 Series rim exit device with dogging feature.  36" length with option to cut down.  Aluminum finish.

ANSI/BHMA A156.3 Series—Grade 1
ANSI A117.1 Section 404.2.6 Accessibility Code (ADA compliant)
UL/cUL listed (3 hour) for “A” label door applications (8’ by 8’)
California Administrative Code Title 24 compliant for Sierra and Summit lever trims

Rim latch bolt: stainless steel 3/4” (19mm) throw
SVR and CVR latch bolt: 1/2” (12.7mm) throw on top latch; 3/8” (9.53mm) on bottom latch
Fasteners: wood and machine screws standard, sex bolts optional (standard
on fire-rated device)
Head cap and end cap: zinc die-cast
Escutcheons: dummy, passage, keyed, night latch
Dogging: hex key and cylinder dogging available
Rim strikes: stainless steel body with plated steel roller standard fire-rated stainless steel strike, with stainless steel
roller standard on QED313
SVR and CVR strikes: Top and bottom standard and fire-rated strikes - unfinished
